Light source
Light Sources: Powerful 1200W LED module
LED life expectancy: 20,000 hours

Lumen:65,700

Color Temperature: 7800K

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 178 mm
Beam Angle: 5-50°

Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM
DMX Channel: 39

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

Pan/Tilt Resolution: 16 bit

3 phase step motors, encoder and sensor positioning, fast, smoothly and quietly movement

Prism

4 Facet Prism, rotatable

Rotating Gobos
6 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 23 mm
Outside diameter: 28 mm
Thickness: 1.1 mm
Max. thickness: 4mm
“SLOT & LOCK” system for easy replacement

Static Gobos
5 high-precision gobos, plus 2 open

Colors
Color Wheel 1: 6 colors+Ra90+open

CMY&CTO
Independent CMY linear color mixing and CTO linear color temperature system can meet the needs of stage effects in specific large and small theaters and related high-demand places, achieving 6500K-3200K linear adjustment.

Framing System
Shutter Blades: 4 Blades, each with separate movement and full blackout
Movement: Smooth with variable speed, fast for creating mid-air effects Positioning: The blades can be precisely positioned
Rotation: ± 90° of the complete framing system, 180°rotation angle

Iris System

Fast electric iris, linear 5% to 100% spot zoom, with macro function and multi-effect changes

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 1400 W
Power In/Out：Power Connector in/out
Data In/Out: 3pin or 5-pin XLR, True One connector

Housing

Made of 5052 aluminum for good heat dissipation

The exterior plastic is made of high-quality nylon + glass fiber material (V0 level flame retardant and waterproof ), ensuring that the fixture can withstand high temperature, low temperature and ultra-high level fire protection.

Thermal protection

Built-in overheating protection, the fan automatically tracks the temperature and performs intelligent speed adjustment to keep each component of the lamp in a lower temperature environment, extending the service life

Fixture Specification
Fixture dimensions:
Height: 878 mm (34.6″)
Width: 326mm (12.8″)
Depth: 461 mm (18.1″)
Weight: 41 kg (90.4lbs)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20

Factory configuration
Digital User Manual
Dmx&Power Cable

Metal Plate or Fast-lock clamps for 50mm truss

Size:

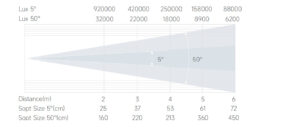

Lux

Color　CMY

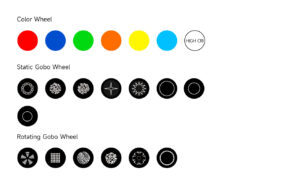

Color Wheel & Gobo
