RAMBO382 CMY

Suzuki
機材： ムービングライト
台数： 16

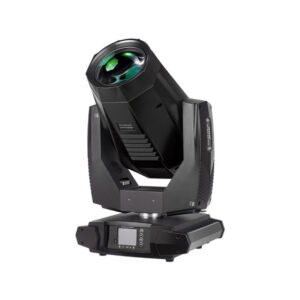

    • 機材名：RAMBO PRO MAX382 CMY
    • メーカー：HI-LTTE
    • ジャンル：ムービングライト
    • 所有台数：16台

    • 仕様

      Model
      RAMBO LEGEND PRO 382 CMY

      Light source

      Light Sources: 382W Osram Lamp

      Optical system
      Advanced optical design to ensure precise gobos and colors

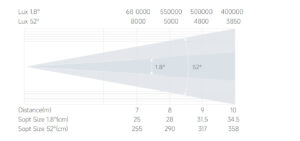

      Diameter of frontal lens: 150mm
      Beam Angle: 1.8°-15°

      Spot Angle:5-48°
      Wash Angle: 7-52°

      Control and Program
      o 4-buttons touch panel
      o Display: LCD display
      o Protocols: DMX512, RDM
      o DMX Channel: 30/19

      o Firmware Upgrade: Upgrade via DMX link
      o Pan/Tilt Resolution: 16 bit

      PAN & TILT
      o Pan movement: 540°
      o Tilt movement: 270°
      o Automatic Pan/Tilt position correction

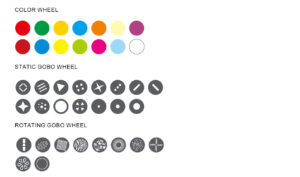

      Static Gobos
      o 14high-precision gobos, plus open

      Color Wheel
      o Color Wheel 1: 13 colors plus open,dual color effect

      Rotating Gobos
      o 9 Interchangeable high-precision glass gobos, plus open
      o Adjustable-speed rotating gobo in both directions
      o Image diameter:12.5mm
      o Outside diameter: 15.97mm
      o Thickness: 1.1mm
      o Max. thickness: 1.2mm

      Electrical and Connectors
      o Power supply with electronic auto-ranging
      o Input voltage range: 100-220V~ 50/60Hz
      o Power consumption: 520 W
      o Power In/Out：Power Connector in/out
      o Data In/Out: 3pin (or 5-pin) XLR

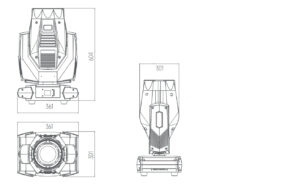

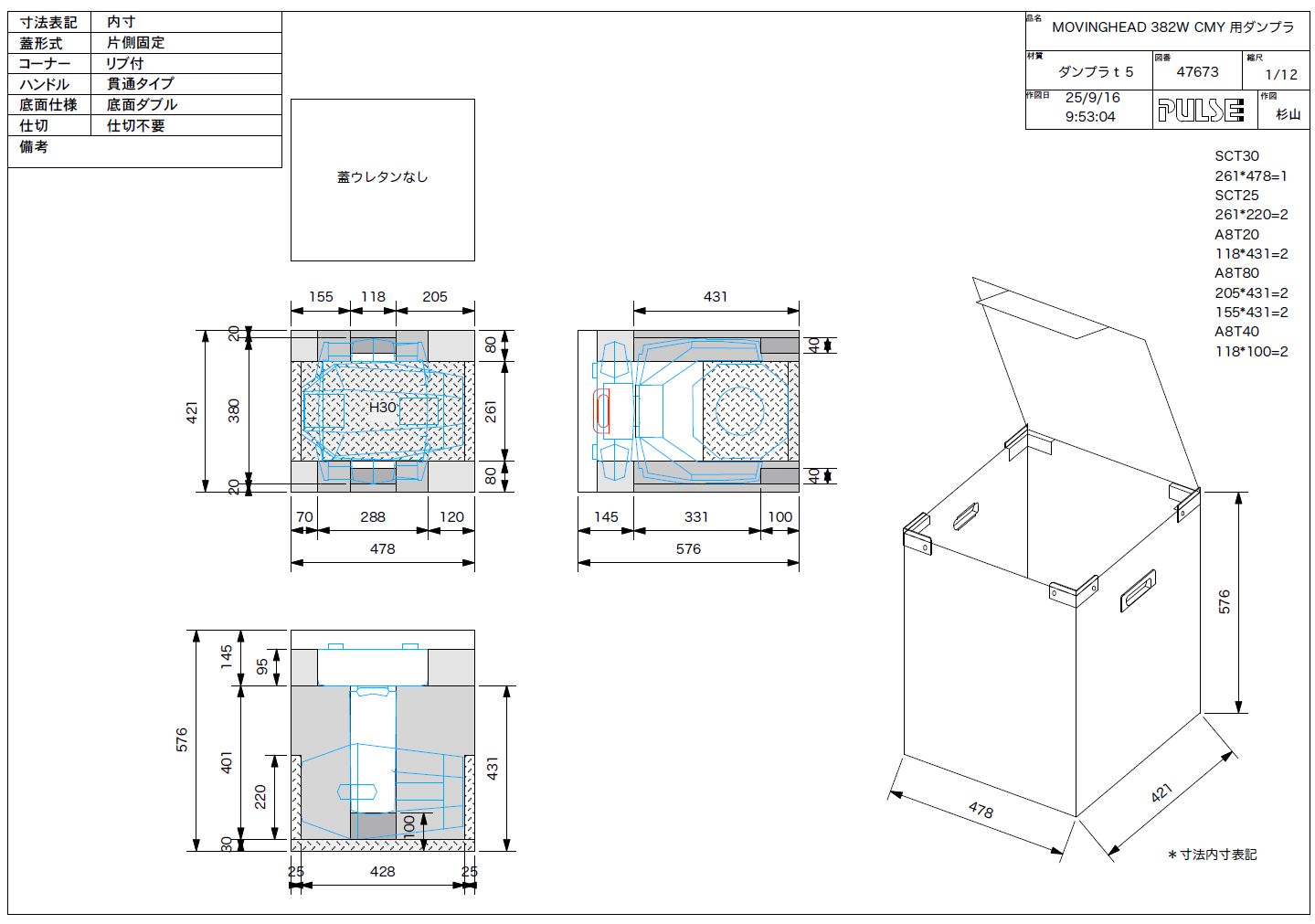

      Fixture Specification
      o Fixture dimensions:
      Height: 361mm (14.2″)
      Width: 301mm (11.9″)
      Depth: 604 mm (23.8″)
      Weight:20.9 kg (46.2 lbs)

      Work environment
      o Maximum ambient temperature: 40°C
      o Minimum operating temperature: 0°C
      o Protection Rating: IP20

      Factory configuration
      o Digital User Manual
      o Power Cable

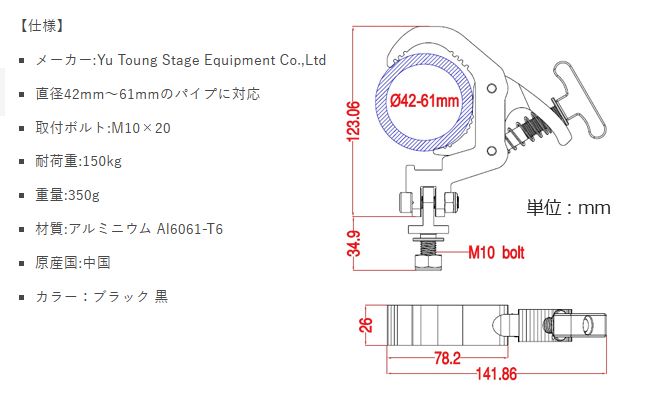

      o 2x Fast-lock clamps for 50mm truss



      DMXマップ 19CH

      Channel Value
      1: PAN 0-255:0-540°
      2: Tilt 0-255:0-246°
      3: pan/tilt speed 0-255:Pan&tilt speed adjustment
      4: Power/Special Functions
      50-129 No Function
      To activate the functions below, hold the DMX value for at least 3 seconds:
      130-139 lamp on Reset(All reset except Pan/Tilt)
      140-149 pan&tilt reset
      150~159 color wheel reset
      160-169 gobo wheel reset
      170-179 strobe reset
      180-189 zoom/focus/prism reset
      190-209 Full Reset
      210-229 No Function
      230-239 lamp off(Light source power off)
      240-255 No Function
      5: color wheel 0-3 white
      4-6 White + Dark Red
      7-12 dark red
      13-15 Dark Red + Dark Blue
      16-21 dark blue
      22-24 Dark Blue + Yellow
      25-31 yellow
      32-34 Yellow + Green
      35-40 Green
      41-43 Green + Magenta
      44-49 Magenta
      50-52 Magenta + Sky Blue
      53-58 Sky Blue
      59-62 SkyBlue + Red
      63-68 Red
      69-71 Red + Dark Green
      72-77 dark green
      78-80 Dark Green + Amber
      81-86 amber
      87-90 Amber + Blue
      91-95 blue
      96-99 Blue + Orange
      100-105 Orange
      106-108 Orange + CTO
      109-113 CTO
      114-118 CTO + UV
      119-123 UV
      124-126 UV + White
      127-129 White
      130-134 Dark red
      135-138 Dark blue
      139-143 Yellow
      144-147 Green
      148-152 Magenta
      153-157 Sky blue
      158-161 Red
      162-166 Dark green
      167-171 Amber
      172-176 Blue
      177-180 Orange
      181-185 CTO
      186-189 UV
      190-221 Forward Rainbow Effect: Fast to Slow
      222-223 Static (No Movement)
      224-255 Reverse Rainbow Effect: Slow to Fast
      6: Frost / Diffusion 0-129 No Function
      130-255 Frost 0% to 100%
      7: static gobo: wheel 0~3 open circle 0~3 open circle
      4-9 gobo 1
      10-15 gobo 2
      16-21 gobo 3
      22-27 gobo 4
      28-33 gobo 5
      34-39 gobo 6
      40-45 gobo 7
      46-51 gobo 8
      52-57 gobo 9
      58-63 gobo 10
      64-69 open circle 1
      70-75 open cirle 2
      76-81 open cirle 3
      82-87 open circle 4
      88-95 gobo 1 shake
      96-103 gobo 2 shake
      104-111 gobo 3 shake
      112-119 gobo 4 shake
      120-127 gobo 5 shake
      128-135 gobo 6 shake
      136-143 gobo 7 shake
      144-151 gobo 8 shake
      152-159 gobo 9 shake
      160-167 gobo 10 shake
      168-175 open circle 1 shake
      176-183 open circle 2 shake
      184-191 open circle 3 shake
      192-199 open circle 4 shake
      200-201 open circle
      202-227 clockwise waterflow from fast to slow
      228-229 stop
      230-255 anticlockwise waterflow from slow to fast
      8: Rotating Gobo Wheel 0-4 Open / Aperture
      1-4 biggest open circle in stactic gobo
      5-7 rotating gobo 1
      8-10 rotating gobo 2
      11-13 rotating gobo 3
      14-16 rotating gobo 4
      17-19 rotating gobo 5
      20-22 rotating gobo 6
      23-25 rotating gobo 7
      26-28 rotating gobo 8
      29-31 rotating gobo 9
      32-34 Gobo 1 with Auto-Rotation
      35-37 Gobo 2 with Auto-Rotation
      38-40 Gobo 3 with Auto-Rotation
      41-43 Gobo 4 with Auto-Rotation
      44-46 Gobo 5 with Auto-Rotation
      47-49 Gobo 6 with Auto-Rotation
      50-52 Gobo 7 with Auto-Rotation
      53-55 Gobo 8 with Auto-Rotation
      56-59 Gobo 9 with Auto-Rotation
      60-67 Gobo 1 Shake (Shake only, 360° adjustable rotation)
      68-75 Gobo 2 Shake (Shake only, 360° adjustable rotation)
      76-83 Gobo 3 Shake (Shake only, 360° adjustable rotation)
      84-91 Gobo 4 Shake (Shake only, 360° adjustable rotation)
      92-99 Gobo 5 Shake (Shake only, 360° adjustable rotation)
      100-107 Gobo 6 Shake (Shake only, 360° adjustable rotation)
      108-115 Gobo 7 Shake (Shake only, 360° adjustable rotation)
      116-123 Gobo 8 Shake (Shake only, 360° adjustable rotation)
      124-129 Gobo 9 Shake (Shake only, 360° adjustable rotation)
      130-1371 Gobo Shake 1 (Auto-Rotation + Shake)
      138-145 Gobo Shake 2 (Auto-Rotation + Shake)
      146-153 Gobo Shake 3 (Auto-Rotation + Shake)
      154-161 Gobo Shake 4 (Auto-Rotation + Shake)
      162-169 Gobo Shake 5 (Auto-Rotation + Shake)
      170-177 Gobo Shake 6 (Auto-Rotation + Shake)
      178-185 Gobo Shake 7 (Auto-Rotation + Shake)
      186-193 Gobo Shake 8 (Auto-Rotation + Shake)
      194-199 Gobo Shake 9 (Auto-Rotation + Shake)
      200-201 Open / Aperture
      202-227 Forward Gobo Scroll Effect: Fast to Slow
      228-229 Maintain Current Action
      230-255 Reverse Gobo Scroll Effect: Slow to Fast
      9 Rotating Gobo Indexing & Rotation 0 No Movement
      1-127 Forward Gobo Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Gobo Rotation: Slow to Fast
      10: prism 0-19 No Prism
      20-75 prism 1
      76-127 prism 2
      128-255 Dual Prism (Combines Prism 1 & 2)
      11: Prism 1 Rotation & Indexing 0 No Movement
      1-127 Forward Prism Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Prism Rotation: Slow to Fast
      12: Prism 2 Rotation & Indexing 0 No Movement
      1-127 Forward Prism Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Prism Rotation: Slow to Fast
      13: zoom 0-255 Zoom: Beam angle from small to large
      14: focus 0-255 Continuous adjustment from far to near
      15: Shutter/Strobe 0-31 Shutter Closed (Lamp power auto-reduces to 80%)
      32-63 Shutter Open, Lamp at full power
      64-95 Strobe: Slow to Fast
      96-127 Shutter Open
      128-143 Fast On / Slow Off: Slow to Fast
      144-159 Slow On / Fast Off: Fast to Slow
      160-191 Shutter Open
      192-223 Random Strobe: Slow to Fast
      224-255 Shutter Open, Lamp at full power
      16: dimmer 0-255 Continuous intensity 0% to 100%
      17:clor Cyan (C) Linear Cut-In 0-255 Cyan Linear Cut-In
      18:clor Magenta (M) Linear Cut-In 0-255 Magenta Linear Cut-In
      19:clor Yellow (Y) Linear Cut-In 0-255 Yellow Linear Cut-In

      DMXマップ 30CH

      8: colour: wheel(fine: positioning)0-255 color wheel fine

      Channel Value
      1: PAN 0-255:0-540°
      2: Pan fine 0-255
      3: Tilt 0-255:0-246°
      4: Tilt fine  0-255
      5: pan/tilt speed 0-255:Pan&tilt speed adjustment
      6: Power/Special Functions
      50-129 No Function
      To activate the functions below, hold the DMX value for at least 3 seconds:
      130-139 lamp on Reset(All reset except Pan/Tilt)
      140-149 pan&tilt reset
      150~159 color wheel reset
      160-169 gobo wheel reset
      170-179 strobe reset
      180-189 zoom/focus/prism reset
      190-209 Full Reset
      210-229 No Function
      230-239 lamp off(Light source power off)
      240-255 No Function
      7-8: color wheel13-15( 0-768(0) White
      1024-1536(1280) White & Dark Red
      1792-3072(2304) Dark Red
      3328-3840(3584) Dark Red + Dark Blue
      4096-5376(4608) dark blue
      5632-6144(5888) Dark Blue + Yellow
      6400-7936(6912) yellow
      8192-8704(8448) Yellow + Green
      8960-10240(9472) Green
      10496-11008(10752) Green + Magenta
      11264-12544(11776) Magenta
      12800-13312(13056) Magenta + Sky Blue
      13568-14848(14080) Sky Blue
      15104-15872(15488) Sky Blue + Red
      16128-17408(16384) Red
      17664-18176(17920) Red + Dark Green
      18432-19712(20992) dark green
      19968-20480(20224) Dark Green + Amber
      20736-22016(21376) amber
      22272-23040(22656) Amber + Blue
      23296-24320(23296) blue
      24576-25344(24960) Blue + Orange
      25600-26880(26240) Orange
      27136-27648(27392) Orange + CTO
      27904-28928(28160) CTO
      29184-30208(29696) CTO+UV
      30464-31488(30464) UV
      31744-32256(32000) UV + White
      32512-33024(32768) White
      33280-34304(33792) Dark red
      34560-35328(34944) Dark blue
      35584-36608(36096) Yellow
      36864-37632(37248) Green
      37888-38912(38400) Magenta
      39168-40192(39680) Sky blue
      40448-41216(40832) Red
      41472-42496(41984) Dark green
      42752-43776(43264) Amber
      44032-45056(44544) Blue
      45312-46080(45696) Orange
      46336-47360(46848) CTO
      47616-48384(48000) UV
      48640-56576(52608) Forward Rainbow Effect: Fast to Slow
      56832-57088(56960) Static (No Movement)
      57344-65280(61312) Reverse Rainbow Effect: Slow to Fast
      9. Frost / Diffusion 0-129 No Function
      130-255 Frost 0% to 100%
      10: static gobo: wheel 0~3 open circle
      4-9 gobo 1
      10-15 gobo 2
      16-21 gobo 3
      22-27 gobo 4
      28-33 gobo 5
      34-39 gobo 6
      40-45 gobo 7
      46-51 gobo 8
      52-57 gobo 9
      58-63 gobo 10
      64-69 open circle 1
      70-75 open cirle 2
      76-81 open cirle 3
      82-87 open circle 4
      88-95 gobo 1 shake
      96-103 gobo 2 shake
      104-111 gobo 3 shake
      112-119 gobo 4 shake
      120-127 gobo 5 shake
      128-135 gobo 6 shake
      136-143 gobo 7 shake
      144-151 gobo 8 shake
      152-159 gobo 9 shake
      160-167 gobo 10 shake
      168-175 open circle 1 shake
      176-183 open circle 2 shake
      184-191 open circle 3 shake
      192-199 open circle 4 shake
      200-201 open circle
      202-227 clockwise waterflow from fast to slow
      228-229 stop
      230-255 anticlockwise waterflow from slow to fast
      11: Rotating Gobo Wheel 0-4 Open / Aperture
      1-4 biggest open circle in stactic gobo
      5-7 rotating gobo 1
      8-10 rotating gobo 2
      11-13 rotating gobo 3
      14-16 rotating gobo 4
      17-19 rotating gobo 5
      20-22 rotating gobo 6
      23-25 rotating gobo 7
      26-28 rotating gobo 8
      29-31 rotating gobo 9
      32-34 Gobo 1 with Auto-Rotation
      35-37 Gobo 2 with Auto-Rotation
      38-40 Gobo 3 with Auto-Rotation
      41-43 Gobo 4 with Auto-Rotation
      44-46 Gobo 5 with Auto-Rotation
      47-49 Gobo 6 with Auto-Rotation
      50-52 Gobo 7 with Auto-Rotation
      53-55 Gobo 8 with Auto-Rotation
      56-59 Gobo 9 with Auto-Rotation
      60-67 Gobo 1 Shake (Shake only, 360° adjustable rotation)
      68-75 Gobo 2 Shake (Shake only, 360° adjustable rotation)
      76-83 Gobo 3 Shake (Shake only, 360° adjustable rotation)
      84-91 Gobo 4 Shake (Shake only, 360° adjustable rotation)
      92-99 Gobo 5 Shake (Shake only, 360° adjustable rotation)
      100-107 Gobo 6 Shake (Shake only, 360° adjustable rotation)
      108-115 Gobo 7 Shake (Shake only, 360° adjustable rotation)
      116-123 Gobo 8 Shake (Shake only, 360° adjustable rotation)
      124-129 Gobo 9 Shake (Shake only, 360° adjustable rotation)
      130-1371 Gobo Shake 1 (Auto-Rotation + Shake)
      138-145 Gobo Shake 2 (Auto-Rotation + Shake)
      146-153 Gobo Shake 3 (Auto-Rotation + Shake)
      154-161 Gobo Shake 4 (Auto-Rotation + Shake)
      162-169 Gobo Shake 5 (Auto-Rotation + Shake)
      170-177 Gobo Shake 6 (Auto-Rotation + Shake)
      178-185 Gobo Shake 7 (Auto-Rotation + Shake)
      186-193 Gobo Shake 8 (Auto-Rotation + Shake)
      194-199 Gobo Shake 9 (Auto-Rotation + Shake)
      200-201 Open / Aperture
      202-227 Forward Gobo Scroll Effect: Fast to Slow
      228-229 Maintain Current Action
      230-255 Reverse Gobo Scroll Effect: Slow to Fast
      12 rotating gobo auto rotation 0 No Movement
      1-127 Forward Gobo Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Gobo Rotation: Slow to Fast
      13 rotating gobo position 0-255 Indexing and Rotation Speed Fine Adjustment
      14: prism 0-19 No Prism
      20-75 prism 1
      76-127 prism 2
      128-255 Dual Prism (Combines Prism 1 & 2)
      15: Prism 1 Rotation & Indexing 0 No Movement
      1-127 Forward Prism Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Prism Rotation: Slow to Fast
      16: Prism 2 Rotation & Indexing 0 No Movement
      1-127 Forward Prism Rotation: Fast to Slow
      128 No Movement
      129-255 Reverse Prism Rotation: Slow to Fast
      17-18: zoom 0-65280 Zoom: Beam angle from small to large
      19-20: focus 0-65280 Continuous adjustment from far to near
      21: Field Lens / Flat Field 0-127 No Function
      128-255 Field Lens Engaged
      22: Shutter/Strobe 0-31 Shutter Closed (Lamp power auto-reduces to 80%)
      32-63 Shutter Open, Lamp at full power
      64-95 Strobe: Slow to Fast
      96-127 Shutter Open
      128-143 Fast On / Slow Off: Slow to Fast
      144-159 Slow On / Fast Off: Fast to Slow
      160-191 Shutter Open
      192-223 Random Strobe: Slow to Fast
      224-255 Shutter Open, Lamp at full power
      23-24: dimmer 0-65280 Continuous intensity 0% to 100%
      25-26:clor Cyan (C) Linear Cut-In 0-65280 Cyan Linear Cut-In
      27-28:clor Magenta (M) Linear Cut-In 0-65280 Magenta Linear Cut-In
      29-30:clor Yellow (Y) Linear Cut-In 0-65280 Yellow Linear Cut-In

HILTTE_RAMBO382CMY_DMXMAP

  • Avolites Titan フィクスチャライブラリー
    Titan Personality ではgaolang 330cmyと同一
    または
    DLしたファイルを解凍後ドキュメント\Titan\Personalities　に保存　”HILTTE – 382cmy(User)で選択
    hiltte382cmy
