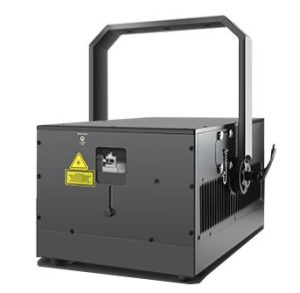

POWER-RGB 20W IP65

Type RGB 20W
Laser Power R/5500mW 637nm G/7000mW 525nm B/7000mW 445nm Class4 Beam Diameter(1/e2):<5.0mm Beam Divergence(1/e2):<1.0mrad(full angle)
Scanning-system LV-30
Beam Size@aperture 6mm
Modulation >100KHz
Power Supply AC 100-240V, 50/60Hz
Power Consumption 800w(MAX)
Net Weight 25kg
Dimension 400x256x215mm
Controls FB4-SE(内蔵)/ILDA
Operation Temperature -10°C~40°C
Protection IP65
Safety elements Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
所有台数 10台
