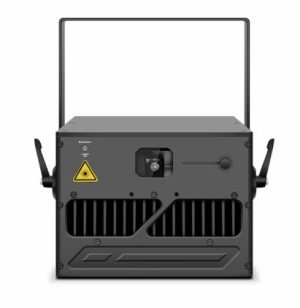

LV11W RGB
| Type | LV11 RGB 11W |
| Laser Power | RGB 445-640nm 合計11,000mW Class4 Beam Diameter(1/e2):<5.0mm Beam Divergence(1/e2):<1.0mrad(full angle) |
| Scanning-system | LV-35 35kpps 8° , Scan angle 50° Max 60° |
| Beam Size@aperture | 5mm |
| Modulation | >100KHz |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption | 400w(MAX) |
| Net Weight | 16kg |
| Dimension | 344x245x176.5mm |
| Controls | FB4-SE(内蔵)/ILDA |
| Operation | Temperature -10°C～40°C |
| Protection | IP54 |
| Safety elements | Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate. |
